Concrete Formwork Plastic Cone For Conduit

Name: Concrete Formwork Plastic Cone For Conduit
Rating: 5 (99 reviews)

Brand:	DAYOU
Material:	Virgin PP
Lead Time:	20-30 Days
Payment Terms:	T/T, L/C at sight, D/P, D/A
OEM & ODM:	Available

Plastic Cone is an injection-molded accessory designed to cap the ends of PVC conduits and reinforcement tubes in concrete formwork. It provides a smooth tapered surface for proper grouting and coverage, while preventing debris from entering the tubes.

Item No.	Size	Packaging method	Color

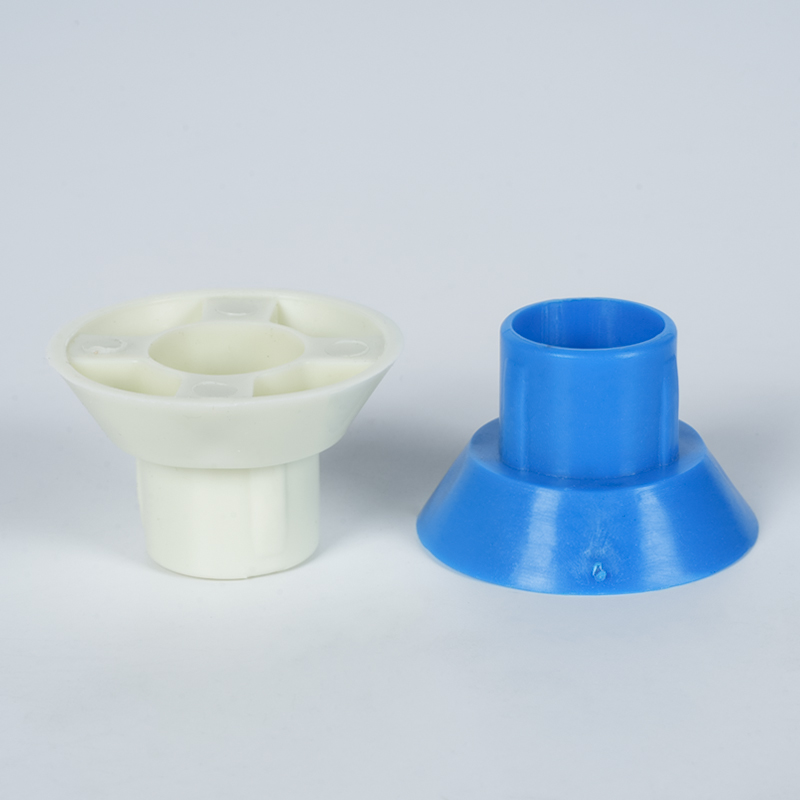

DCC25(with flange)	212518mm	500 or 1000pcs/carton	Black Red Blue

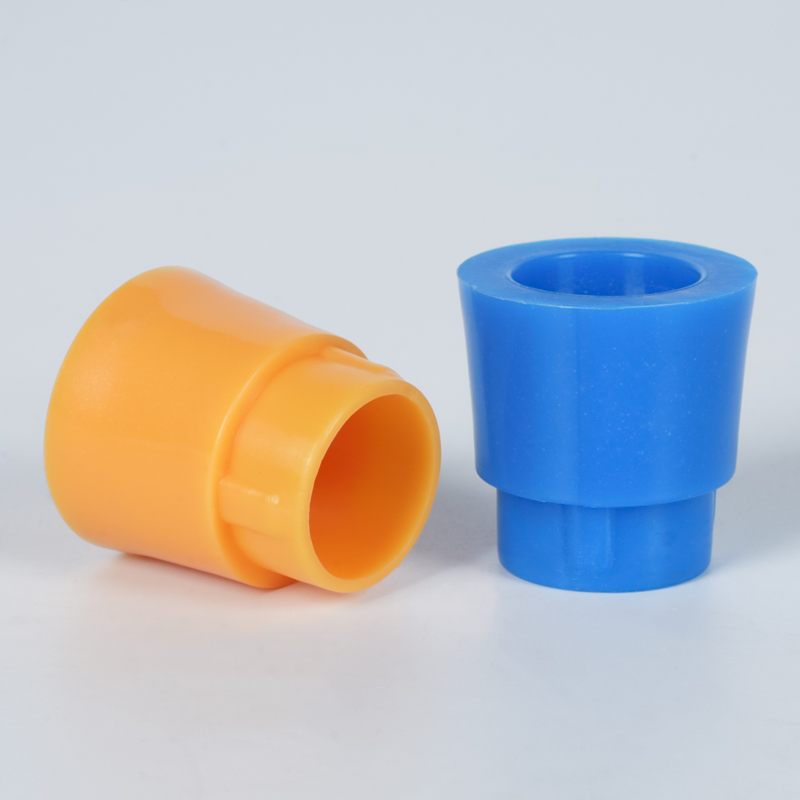

DCC25-1(No flange)	212518mm	500 or 1000pcs/carton
DCC27	272822mm	500 or 1000pcs/carton

Item	Specification
Reusable Times	20-30 times under normal non-damage condition
Working Temperature	-20℃ ~ +60℃, resistant to summer outdoor sun exposure, no easy deformation
Weight per piece	DCC25 ≈12g；DCC27 ≈16g

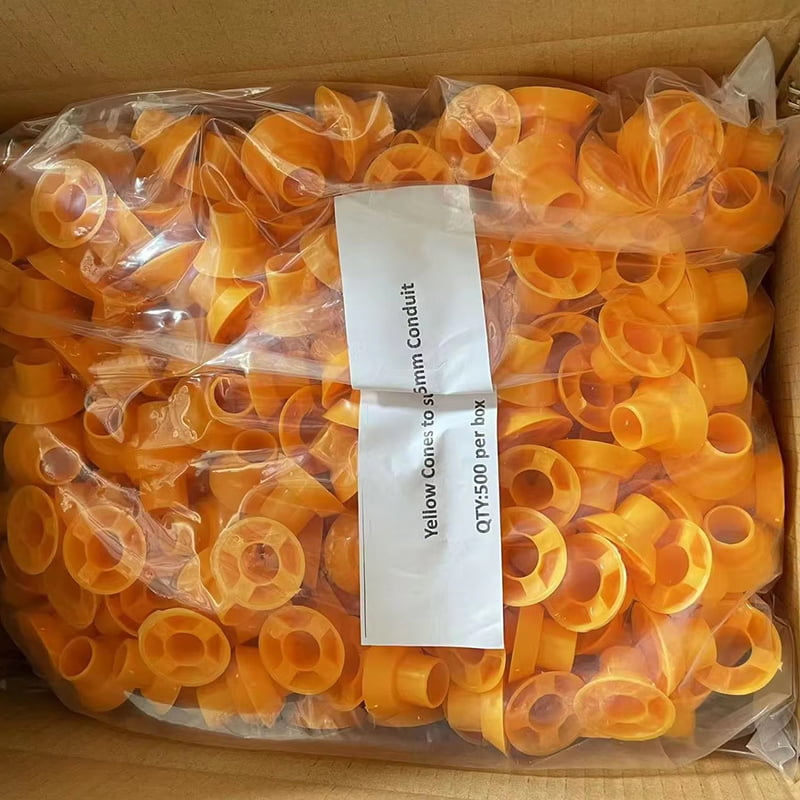

Carton dimension	500pcs/ctn：42×32×28cm；1000pcs/ctn：52×40×32cm
Container Loading	20GP: about 220000-260000 pcs；40HQ: about 550000-600000 pcs
Test Performance	Good impact resistance, injection-molded PP material, not easy to crack when tapping during demoulding

Key Features

Easy Installation & Removal: Quickly assembled and disassembled without special tools

Durable & Eco-Friendly: Resistant to corrosion, aging, and long-term use in construction environments

Precise Fit: Designed to hold securely on conduit ends, leaving a clean, tapered surface for finishing

Effective Anti‑slurry Sealing Flange version blocks concrete mortar from seeping between formwork panel and cone; avoid hole burrs after demolding, reduce secondary wall polishing work.

Cost‑saving Reusable Design High‑quality virgin PP, under proper operation can be reused 20‑30 times on construction site, greatly cut accessory purchase cost for contractors.

Two‑structure solve different form‑gap problems Flange type for standard formwork gap; no‑flange model for narrow‑gap, dense rebar positions. Two options to adapt complex wall‑rebar layout.

Easy post‑wall repair Uniform standard taper hole after demoulding. Convenient for later grouting, plastering and hole‑filling work on concrete wall.

Applications

Concrete Formwork: Sealing ends of PVC conduits and reinforcement tubes

Construction Projects: Ensuring correct grouting and coverage in concrete structures
